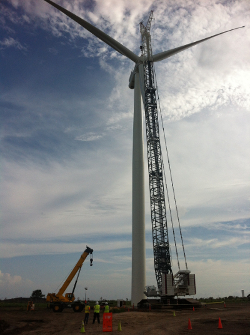

100MW Pattern Energy - Santa Isabel Wind Farm

Santa Isabel, PR

Electrical design of the Pattern Santa Isabel wind farm project consisting of 44 x 2.3MW Siemens wind turbines, 34.5kV underground direct buried system, 100MVA step-up collection substation, 115kV Transmission Line, 115kV breaker-and-a-half (5 breaker scheme) switchyard.

In service since Dec-2012

30MW Punta Lima Wind Farm

Naguabo, PR

Electrical design of the Punta Lima Naguabo wind farm project consisting of 13 x 1.8MW Vestas wind turbines, 34.5kV underground direct burial collection system and 30MVA step-up collection substation.

This step-up substation included a +/-12MVAR DSTATCOM, 5MVAR capacitor bankd and 4MVAR reactor bank.

In service since Dec-2012

10MW Horizon Ennergy PV Farm

Salinas, PR

Electrical design of the Medium Voltage (38kV) interconnection switchyard, 38kV interconnection transmission line and a step-up collection substation collection substation.

Currently under construction.
